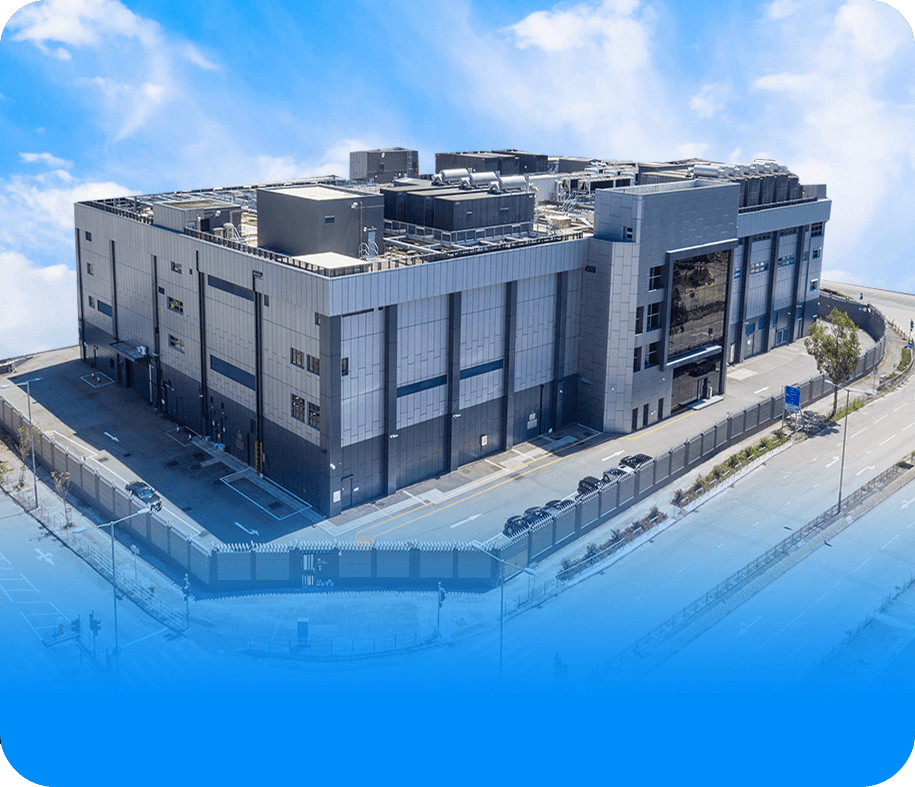

33, Chun Choi Street, Tseung Kwan O Industrial Estate, Hong Kong
- 2N UPS redundancy
- Two 11 kV Medium Voltage power feeds from separate substations diversely routed to ground floor substations (2N)
- Six 2.5MVA and four 2MVA transformers operating in a 2N configuration with distributed redundancy using an N+1 methodology
- Six 2,000 kVA and three 2,250 kVA generator sets operating in a 2N configuration with distributed N+1 redundancy
- Underground fuel tank with enough capacity for 24 hours full load operation
- N+1 redundant cooling system
- The site has a total of 12 air-cooled chillers operating in 2N and distributed redundancy with N+1 methodology
- High efficiency chiller systems provides dedicated cooling capacity for each data hall with an area of approximately 900 sq m.
- Designed in accordance with ASHRAE TC 9.9 2011 conditions with underfloor air supply
- Double interlock pre-action dry-pipe sprinkler system
- Overhead and under-floor smoke detection system
- Multi-Layer security level
– Onsite security personnel 24 x 365
– CCTV with 90 day backup
– Dual authentication access to the data center with Biometric Scan and Card Key access control
- SOC1
- SOC2
- SOC3
- PCI-DSS
- ISO 9001
- ISO 14001
- ISO 27001
- Carrier-neutral access to Tier 1 providers
- Diverse and redundant fibre routes to the building
- Diverse and redundant POP (Point of Presence) rooms
