Data Storage Solutions

Reliable Data Storage and Backup with SAN / JBOD

Dataplugs offer highly customizable and highly available data storage solutions that you won’t easily outgrow. Our agile and scalable storage solutions allow you to start small and add capacity as you need it. We monitor your systems 24×7 and offer a 99.9% uptime SLA guarantee.

Storage Area Network (SAN)

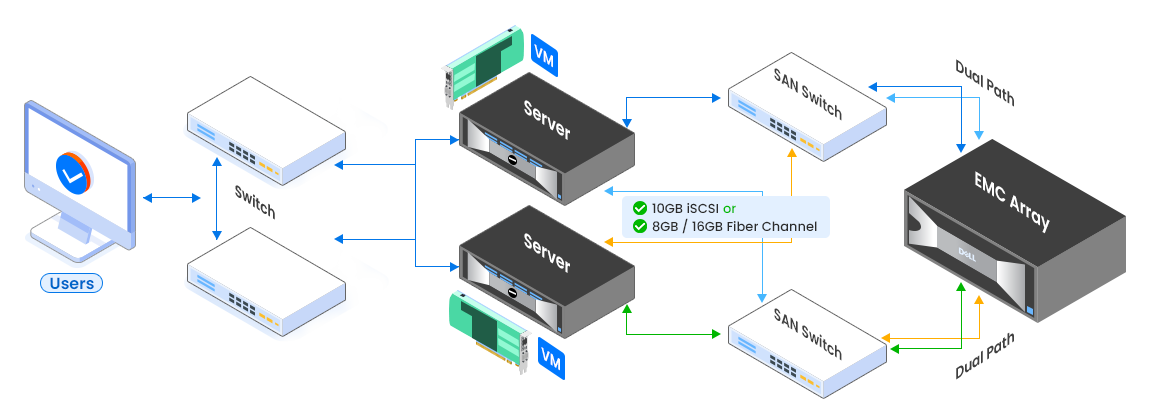

storage_diagram

Storage Area Network (SAN) is a dedicated high-speed network that interconnects and presents shared pools of storage devices to multiple servers. Each server on the network can access hard drives in the SAN as if they were local disks directly attached to the server. It eliminates traditional network bottlenecks and enables low-latency, high-bandwidth connections to data. Thus, SANs are particularly useful for I/O intensive storage and database hosting.

We provide a range of SAN platforms from Dell that are custom configured to minimize your cost while meeting your exact requirements.

• Offer Ethernet-based iSCSI and Fibre Channel-based SAN
• Support hybrid HDD-SSD disk
• High availability with dual power feeds and redundant network connections

Talk To Our Data Storage Expert

Dell EMC SC5020 Storage Array

Processors2 x Intel® Xeon® Processor E5-2630 v3, 2.4GHz, 8 cores
Internal storage capacity30 x 2.5” drive bays
System memory128GB per SC5020 array (64GB per controller)
Operating systemDell Storage Center OS (SC OS) 7.2
User interfaceWeb-based graphical user interface (GUI)
Single or dual controllerDual Controller
Connectivity (standard)10GB iSCSI
Connectivity (optional)8GB / 16GB Fiber Channel
Maximum drives supported222 per array (30 internal, plus 192 external), more in federated systems
Supported expansion enclosure capacityDell EMC SC420: 24 x 2.5” drive bays (12Gb SAS)
Dell EMC SC400: 12 x 3.5” drive bays (12Gb SAS)
Dell EMC SC460: 60 x 3.5” drive bays (12Gb SAS)
Max raw capacity2.16 PB per array (SSD or HDD), more in federated systems
RAID levelsRAID 0, 1, 5, 6, RAID 10, and RAID 10 DM (Dual Mirror)
Size3U
13.33 cm (5.25 in.) H x 44.5 cm (17.52 in.) W x 78.5 cm (30.9 in.)
Controllers2 hot-swappable per chassis (active/active)
Data ProtectionData Protection, Disaster Recovery, Security

Just a Bunch of Disks (JBOD)

HGSTSupermicro
Form Factor2U/4U2U / 3U / 4U
Maximum HD BaysUp to 102 x 3.5″ drive bays (Up to 24 can be SAS or SATA SSD)Up to 90 x 3.5″/2.5″ hot-swap SAS drive bay with SES3
Maximum CapacitiesUp to 1.2PB of raw storage in 4UUp to 540TB of raw storage in 4U
Host ConnectionsSAS3 12GB/sSAS3 12Gb/s

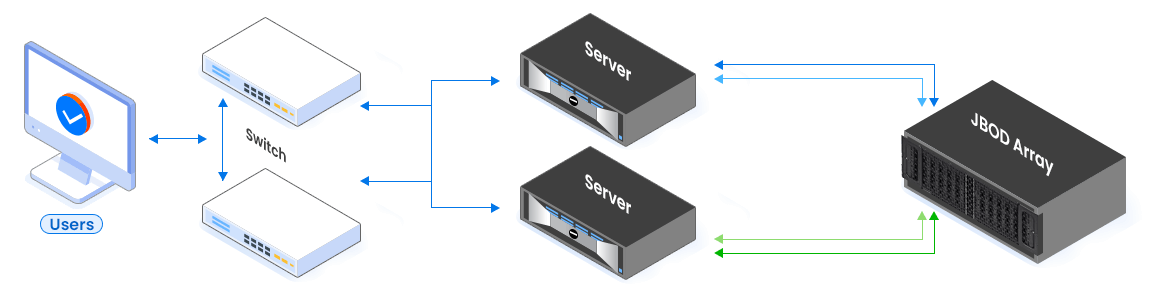

JBOD is an architecture combining the capacity of multiple disks into a single, large logical storage device (also called “spanning”), or make them accessible as independent hard disk drives. Capacity of all disks can be fully utilized, making JBOD a cost effective solution for high volume of storage needs.

We supply a range of JBOD platforms from HGST and Supermicro that are custom configured to minimize your cost while meeting your exact requirements.

• Total storage capacity up to 1.2PB
• Support up to 102 X 3.5” SAS / SATA drives
• Highly flexible with mix and match of SAS and SATA drives in a single system

Talk To Our Data Storage Expert

JBOD is an architecture combining the capacity of multiple disks into a single, large logical storage device (also called “spanning”), or make them accessible as independent hard disk drives. Capacity of all disks can be fully utilized, making JBOD a cost effective solution for high volume of storage needs.

We supply a range of JBOD platforms from HGST and Supermicro that are custom configured to minimize your cost while meeting your exact requirements.

• Total storage capacity up to 1.2PB
• Support up to 102 X 3.5” SAS / SATA drives
• Highly flexible with mix and match of SAS and SATA drives in a single system

Talk To Our Data Storage Expert
