SAN Storage Solutions

High Performance and Greater Flexibility with Dell EMC SC7020F

SAN Storage Solutions

High Performance and Greater Flexibility with Dell EMC SC7020F

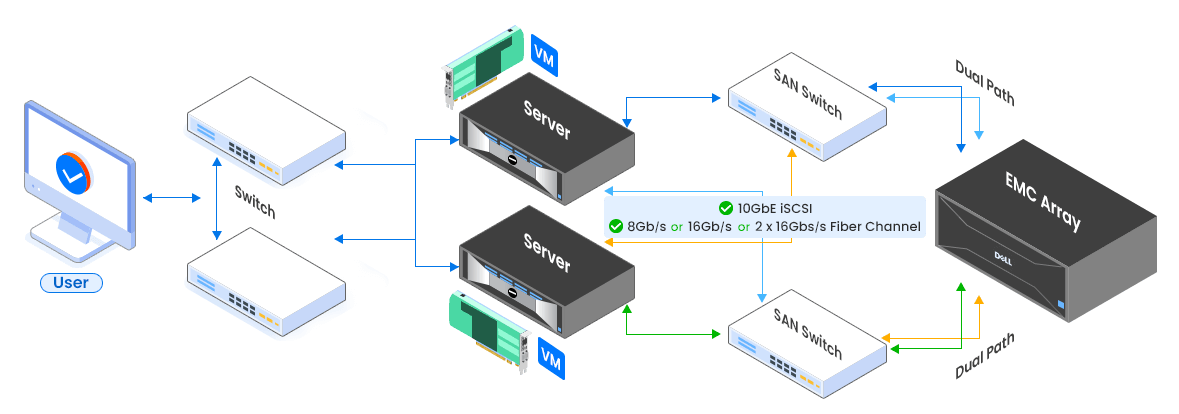

Dataplugs offers a data storage solution – Storage Area Network (SAN) – to you, which refers to multiple storage devices formed a shared-storage-pool that is interconnected and distributed by a private and high-speed network, which transmit to different servers. Each server is able to access SAN’s local disks under the network as if the servers directly attached to SAN’s hard-drives. It facilitates data transfer rate, backup centralization, risk avoidance and data security. Also, disaster recovery is simplified and cost is saved. SAN is a useful solution for the demand of database hosting.

Better Efficiency

SAN network uses high-end speed technology with fiber channel to accelerate the communication between clients and servers. The higher speed of data transfer, the better work efficiency.

Centralized Backup

Data in SAN is centralized. Every disconnection from a single network can be stabilized and resumed by other servers.

High Scalability

The CPU and storage capacity of SAN can be scaled separately.
Users can flexibly expand the storage capacity according to the increasing needs of storage.

Secured Data

High risk avoidance with functions of mirror and snapshot. Data is secured since an unauthorized user cannot download data from the server.

SAN Protocol
Fibre Channel Protocol (FCP)
• Large volumes of information can be transferred quickly through a
   utilization of fibre channel connection
Internet Small
Computer Systems Interface (iSCSI)
• Facilitating data transfers over intranets
• Managing storage over long distances
• Transmitting data over local area networks (LANs), wide area networks
   (WANs),or the Internet
• Enable location-independent data storage retrieval.

SAN Protocol
Fibre Channel Protocol (FCP)

• Large volumes of information can be transferred
   quickly through autilization of fibre channel connection
Internet Small
Computer Systems Interface (iSCSI)


• Facilitating data transfers over intranets
• Managing storage over long distances
• Transmitting data over local area networks (LANs),
   wide area networks (WANs),or the Internet
• Enable location-independent data storage retrieval.

Dell EMC SC7020F All-Flash Storage Array

Take your business to new levels of productivity and success with Dell EMC SC7020F All-Flash Storage Array. Its active/active, performance-centric design keeps IOPS and throughput high as you scale up and out. Maximum IOPS can reach up to 1.2 Million, helping your business to compete in today’s dynamic market. The SC7020F also supports multiple protocols — Fibre Channel and iSCSI, allowing you to expand your front-end network connectivity and increase capacity with expansion enclosures. The SC7020F is smart AFA choice for modern workloads that provides self-optimizing performance, federated scale and mobility, all-inclusive software value.

Dual 8-Core
Intel E5 Processors

606 Drive Max
Expansion

Up to 1.2M Max
IOPS

Supports Intermixed
SSD formats
  • Powerful native management tools
  • Live Migrate multi-array federation included
  • Live Volume auto-failover
  • Thin snapshots and replication
  • Guaranteed performance with QoS
  • Native application recovery tools
  • Proactive self-optimization with Intelligent Deduplication and Compression, RAID tiering

Dell EMC SC7020F All-Flash Storage Array

Take your business to new levels of productivity and success with Dell EMC SC7020F All-Flash Storage Array. Its active/active, performance-centric design keeps IOPS and throughput high as you scale up and out. Maximum IOPS can reach up to 1.2 Million, helping your business to compete in today’s dynamic market. The SC7020F also supports multiple protocols — Fibre Channel and iSCSI, allowing you to expand your front-end network connectivity and increase capacity with expansion enclosures. The SC7020F is smart AFA choice for modern workloads that provides self-optimizing performance, federated scale and mobility, all-inclusive software value.

Dual 8-CoreIntel E5 Processors

606 Drive Max Expansion

Up to 1.2M Max IOPS

Supports Intermixed SSD formats

• Powerful native management tools

• Live Migrate multi-array federation included

• Live Volume auto-failover

• Thin snapshots and replication

• Guaranteed performance with QoS

• Native application recovery tools

• Proactive self-optimization with Intelligent Deduplication and Compression, RAID tiering

ProcessorsDual Intel® Xeon® Processors, E5-2628 v3 2.5GHz, 8 cores
Internal storage capacity30 x 2.5” drive bays
System memory256GB per array (128GB per controller)
Operating systemDell Storage Center OS (SCOS) 7.2 or greater
Management interfaceBrowser-based (HTML 5):
CloudIQ (cloud-based storage monitoring and analytics) Unisphere for SC (single-array element manager, no software installation required) Unisphere Central for SC (multi-array management)

Client application:
Dell Storage Manager – Advanced multi-array, multi-site and cross-platform (PS Series) management
Single or dual controllerDual Controller
Connectivity (standard)2 x 10GbE ports for iSCSI protocols
Connectivity (optional)8Gb/s or 16Gb/s or 2 x 16Gb/s FC ports for Fiber Channel
Maximum drives supported606 drives per array, more in federated systems
Supported expansion enclosure capacityDell SC420F: 24 x 2.5” drive bays (12Gb SAS)
Max raw capacity4PB per array, more in federated systems
Storage mediaSSD: write-intensive and read-intensive drives (can be mixed in single system), SED SSDs
RAID levelsRAID 0, 1, 5, 6, RAID 10, and RAID 10 DM (Dual Mirror); any combination of RAID levels can exist in single array
Size3U 13.33 cm (5.25 in.) H x 44.5 cm (17.52 in.) W x 78.5 cm (30.9 in.)
Controllers2 hot-swappable per chassis (active/active)


Why choose
Dataplugs for setting up SAN?

Ethernet-based iSCSI and Fibre Channel-based SAN

High availability with dual power feeds

Extremely fast data access

OS level (block level) access to files

Redundant network connections
